2023 Suzuki GSX-R1000 Pearl Brilliant White / Metallic Matte Stellar Blue- 100219

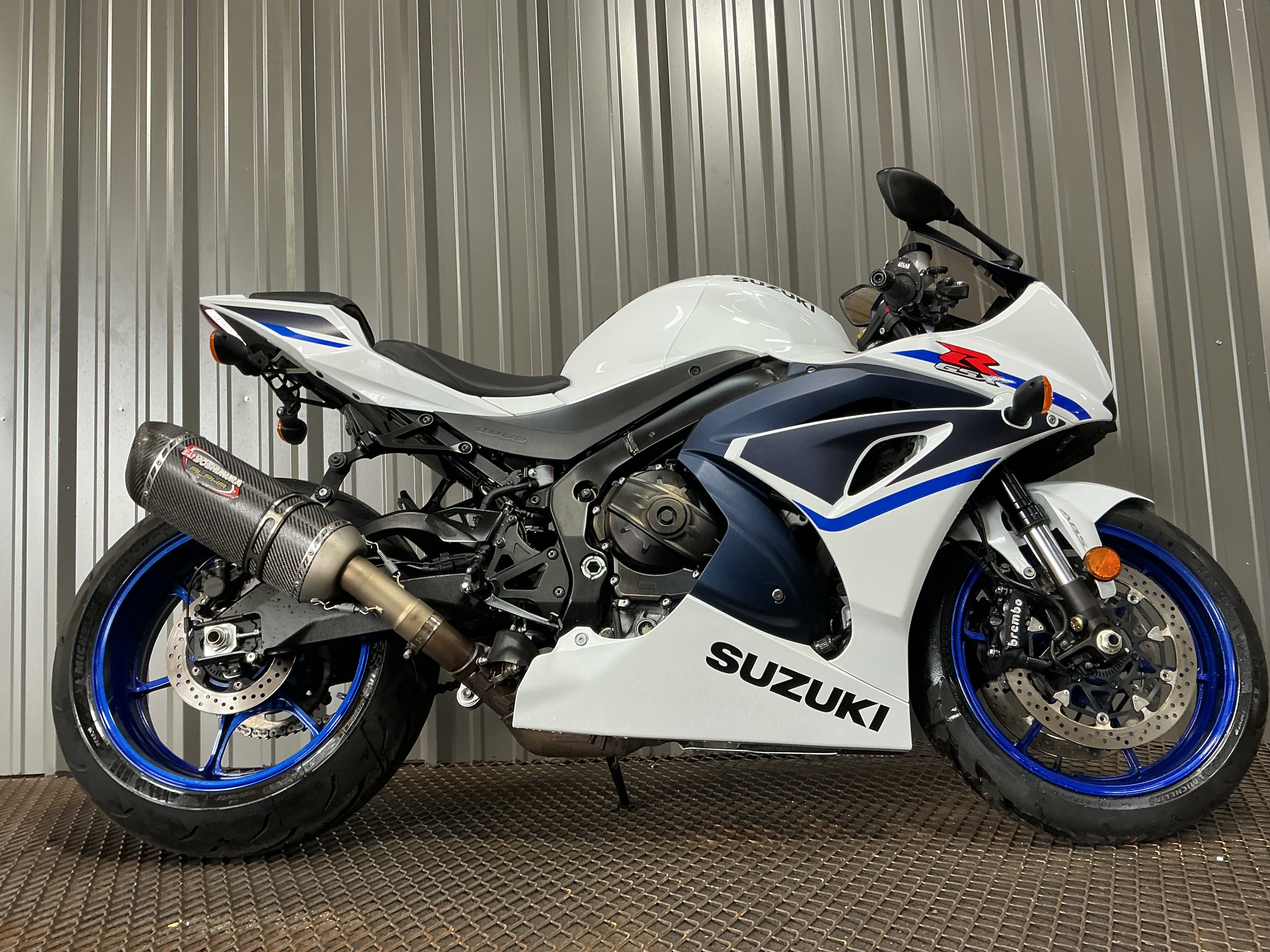

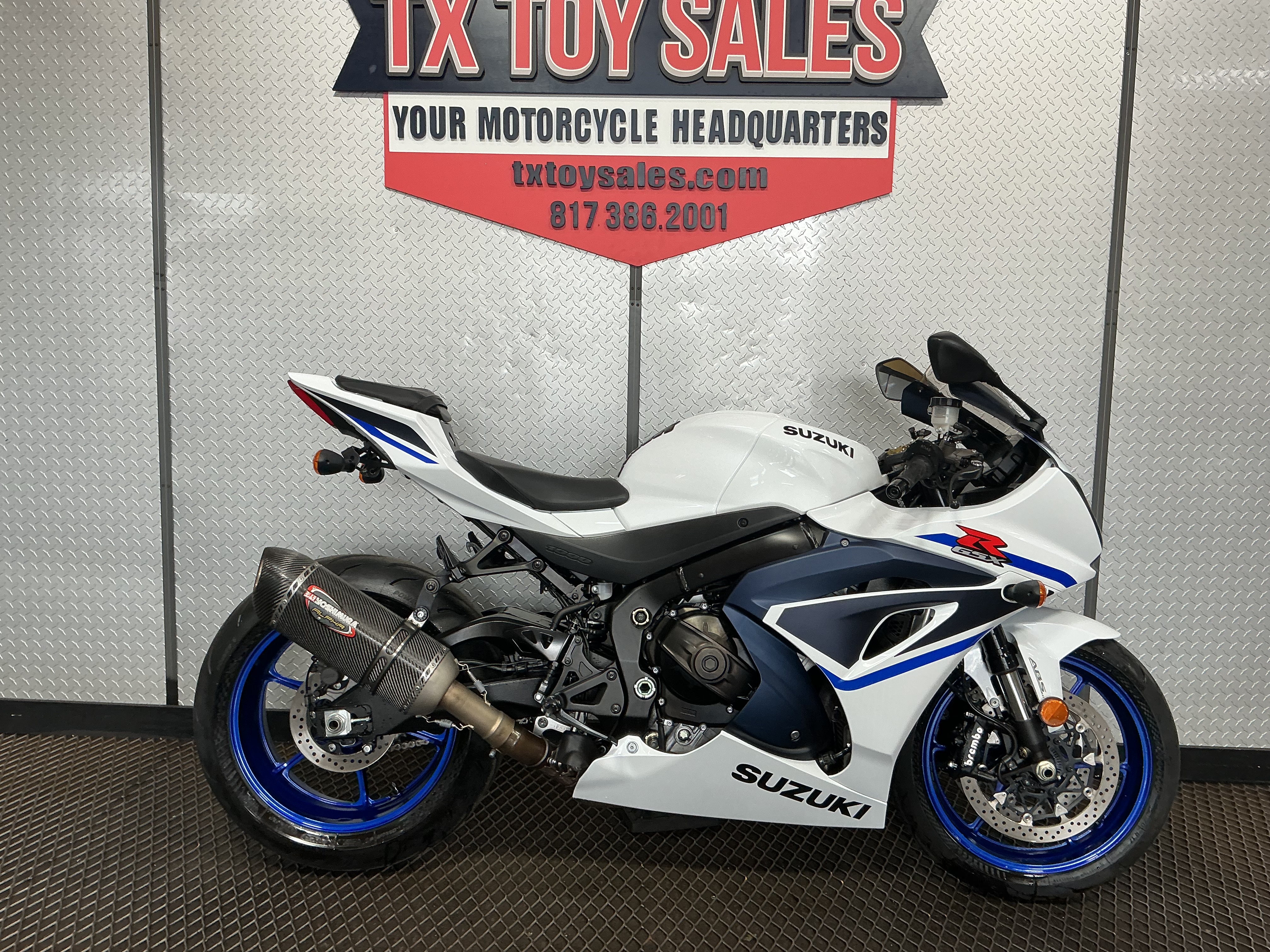

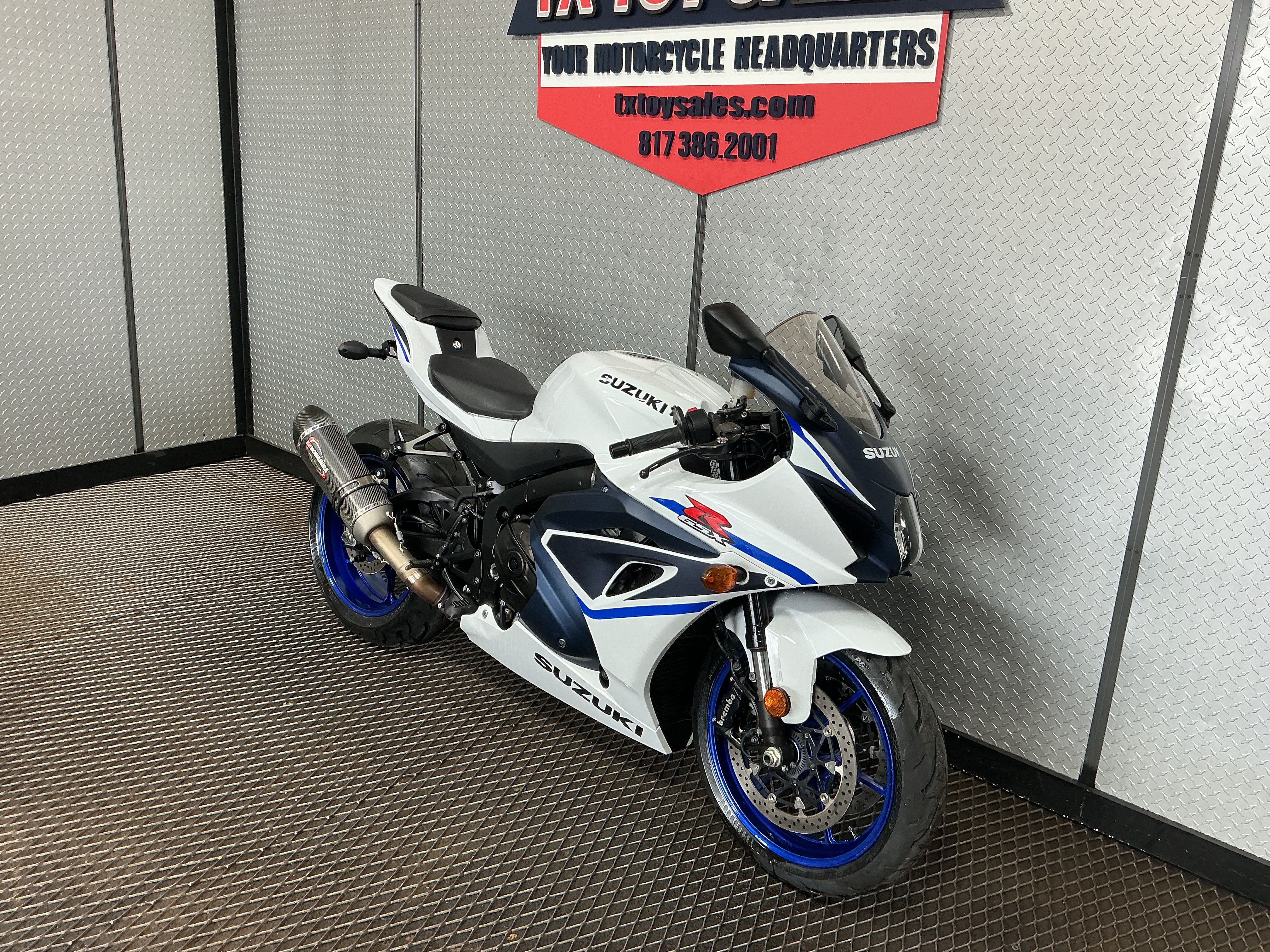

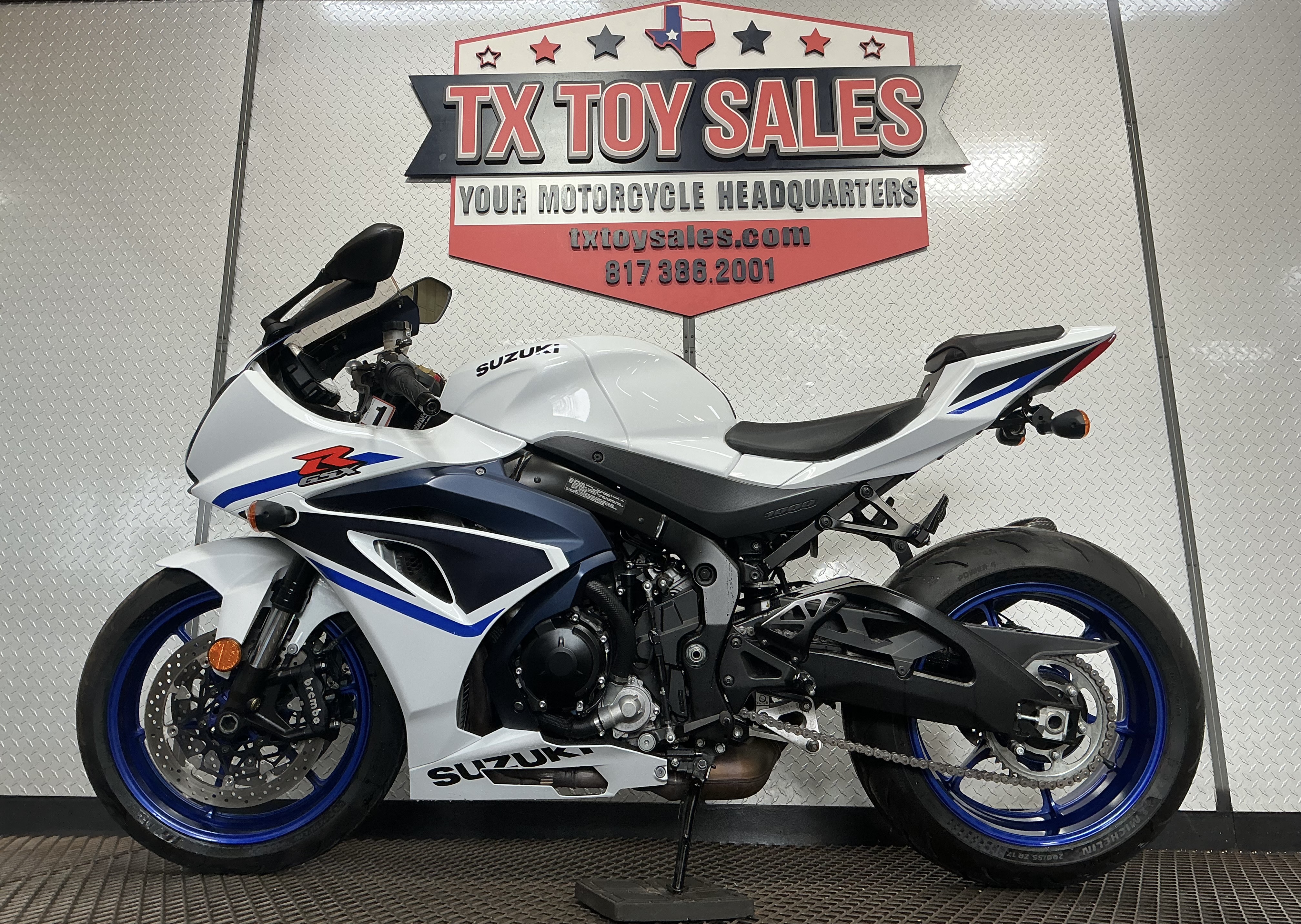

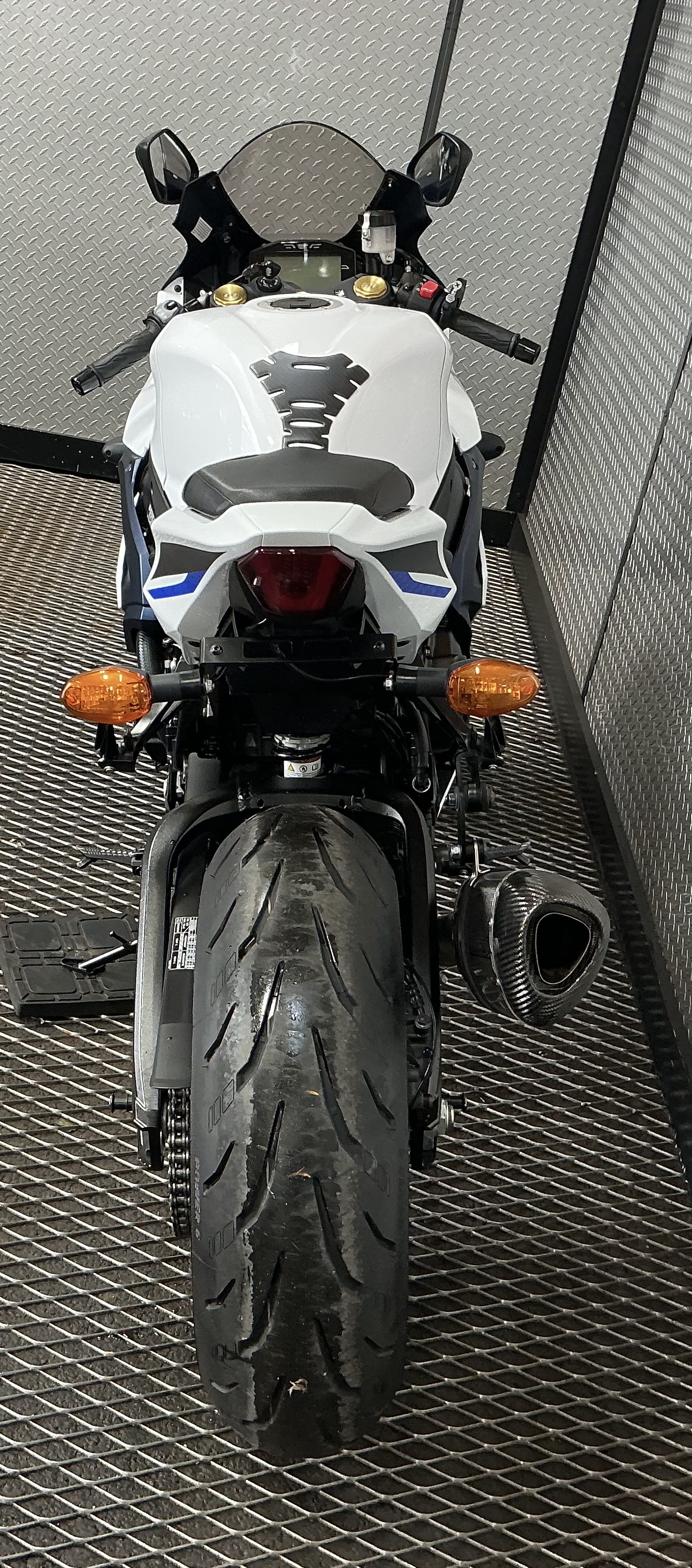

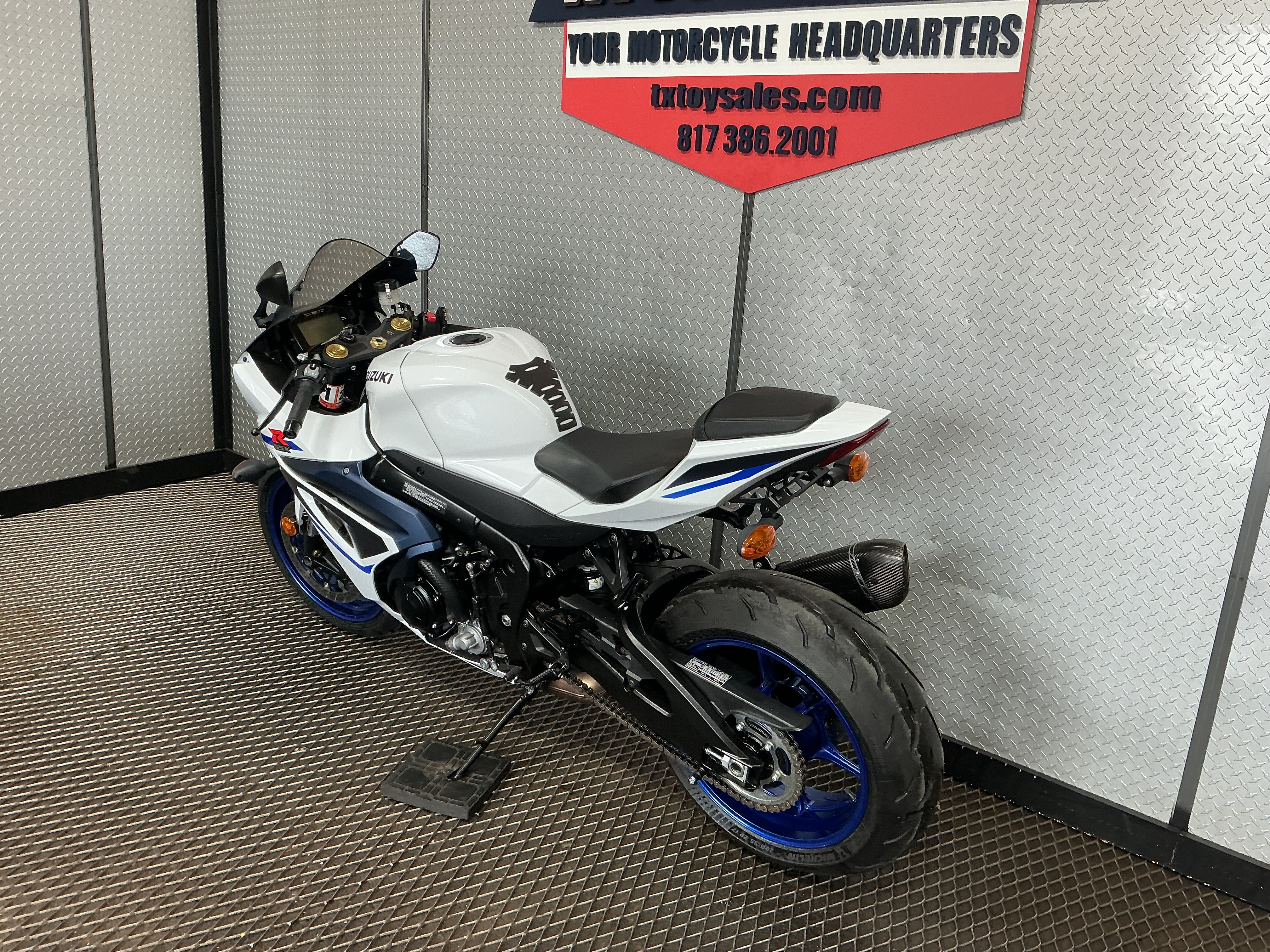

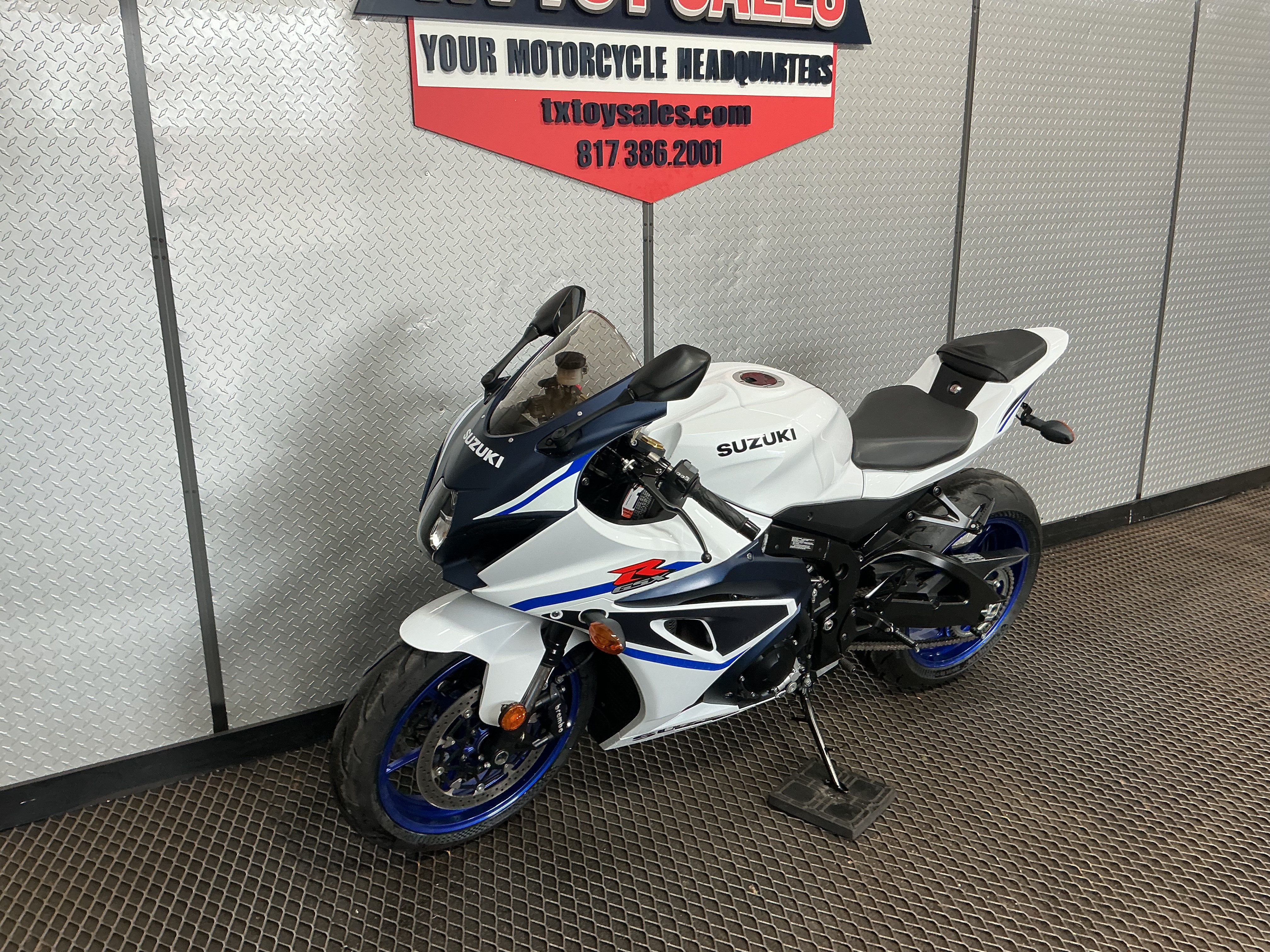

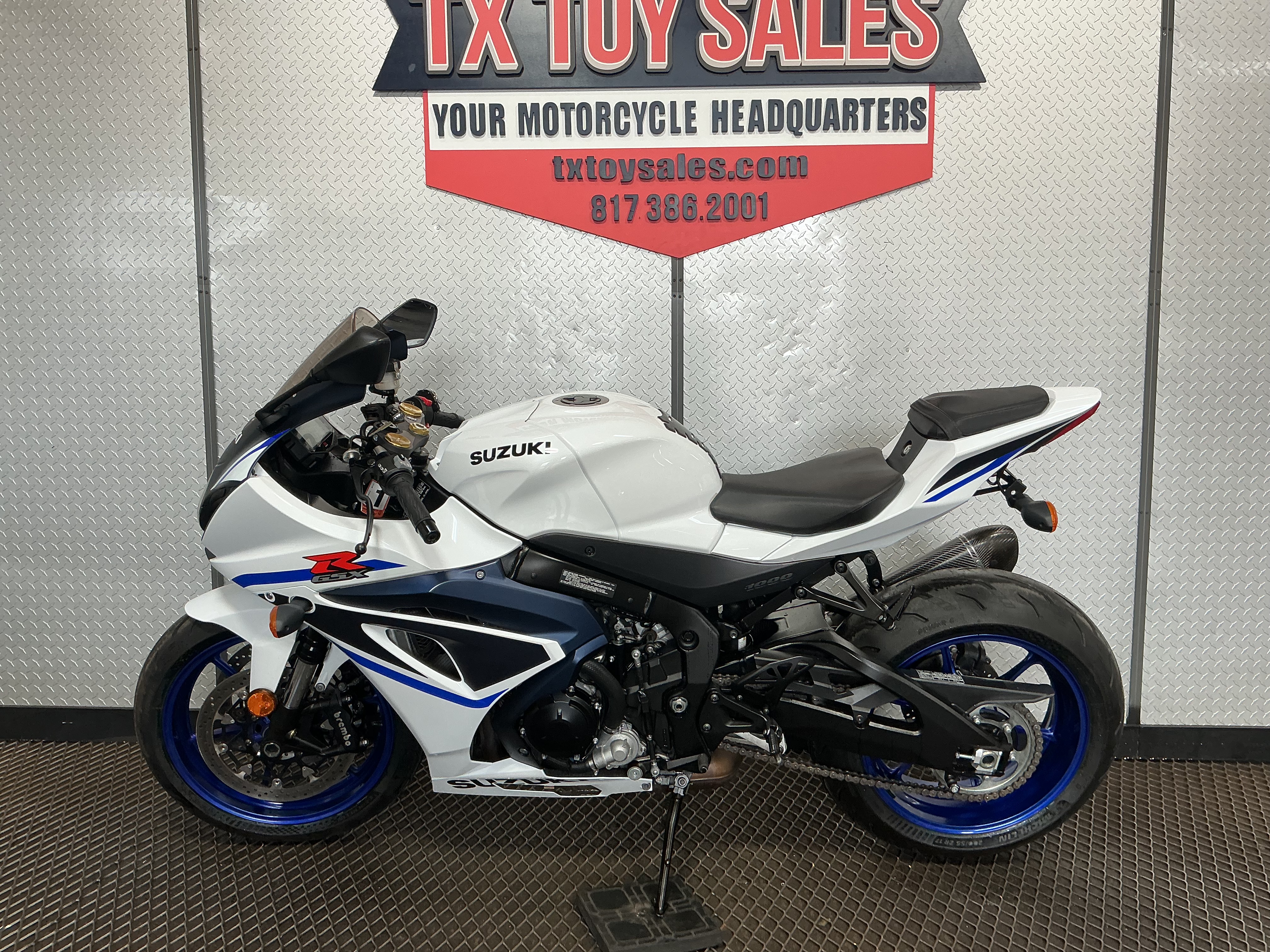

2023 Suzuki GSX-R1000 Pearl Brilliant White / Metallic Matte Stellar Blue

Suzuki revolutionized the sportbike category with the introduction of the original GSX-R750 in 1985, and then created another milestone in 2001 with the introduction of the GSX-R1000. Using the lithe chassis of the GSX-R750 and a 988cc inline four-cylinder engine design that Suzuki is renowned for, liter-class Superbike performance became available to riders everywhere.

A proud member of the GSX-R family of ultra-high-performance motorcycles, the 2023 GSX-R1000’s versatile engine provides class-leading power that is delivered smoothly and controllably across a broad rpm range. Like the original GSX-R1000, the 2023’s compact chassis delivers nimble handling with excellent suspension feel and braking control, ready to conquer a racetrack or cruise a country road. Advanced electronic rider aids such as traction control and a bi-directional quick shifter enhance the riding experience while the distinctive, aerodynamic GSX-R bodywork slices through the wind.

Equipped with Showa’s Big-piston Fork plus Brembo T-drive rotors and Monobloc brake calipers the GSX-R1000 is ready for a ride through the twisties on the street or though chicanes on a track day. A new Pearl Brilliant White and Metallic Matte Stellar Blue paint scheme with contrasting blue graphics joins a dark, stealthy Metallic Matte Black No. 2 and Glass Sparkle Black body treatment that uses a slash of yellow to further define the GSX-R’s race-ready appearance.

And that is the point, as each GSX-R1000 is poised to Own the Racetrack, imagine what they can accomplish on the street.

Features may include:

• The 2023 GSX-R1000 arrives in a new Pearl Brilliant White and Metallic Matte Stellar Blue paint scheme with blue wheels or a new Metallic Matte Black No. 2 and Glass Sparkle Black scheme with yellow graphics on the fairing and black wheels.
• The 999cc, DOHC, inline-four engine produces great top-end power with a strong low- to mid-range pull thanks to the exclusive Suzuki Variable Valve Timing (VVT) system and the highly efficient 4-2-1 exhaust with a revised muffler and heat shield.
• Advanced electronics include the Suzuki Bi-Directional Quick Shift System as standard equipment, an Inertia Measurement Unit, S-DMS adjustable engine output, and Traction Control* to increase track and street performance.
• Twin-spar aluminum frame is lighter and more compact than the prior-generation GSX-R1000 for nimble handling with a high level of grip when cornering.

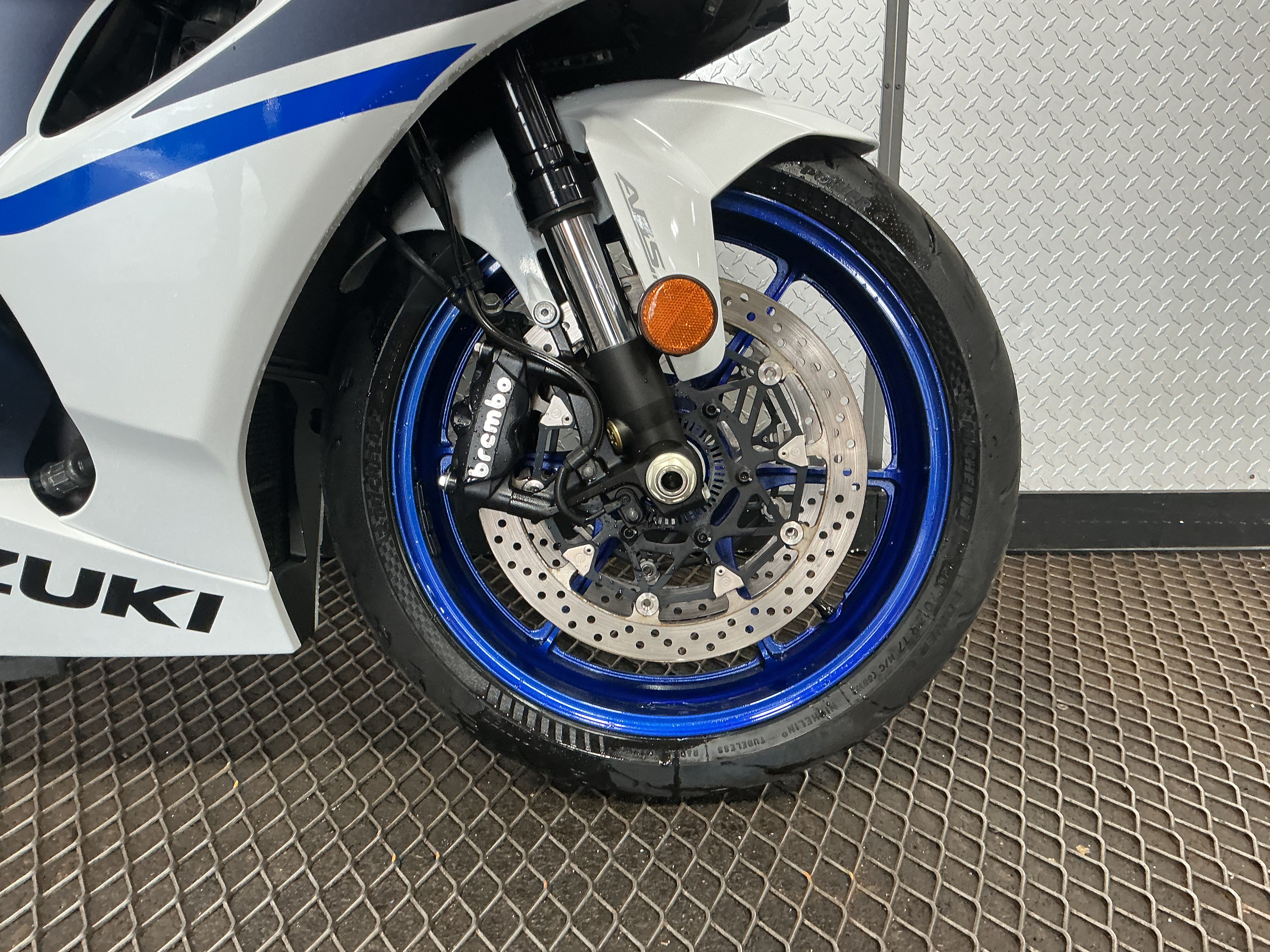

• Advanced Showa suspension combines with ABS-equipped Brembo T-drive front brake rotors and four-piston calipers for extraordinary handling and stopping performance.

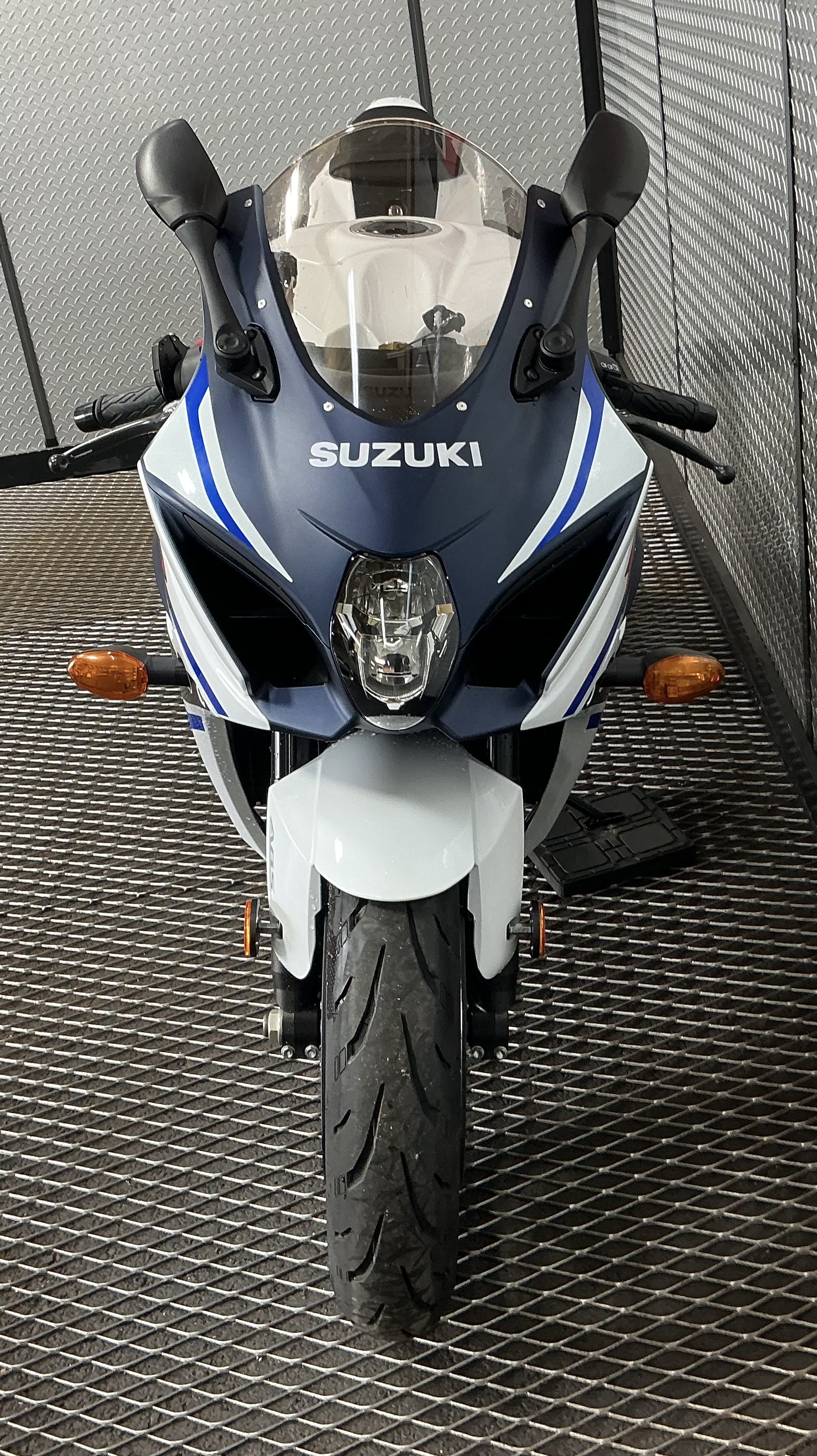

• Aerodynamic fairing houses a bright LED headlight and Suzuki Ram Air Direct ducts that feed the engine to boost top end power.

Engine Features

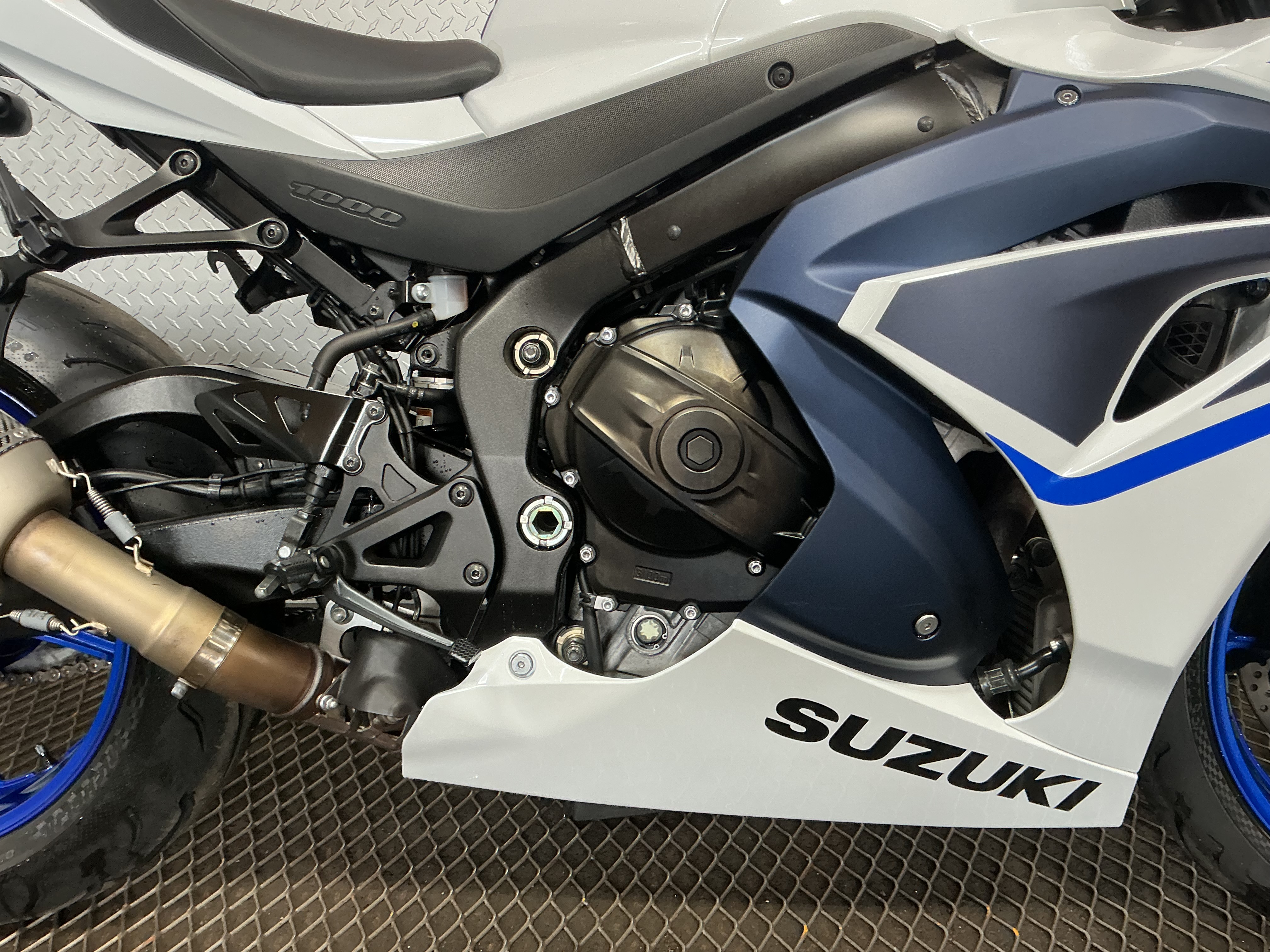

• The compact, four-stroke, liquid-cooled, DOHC, 999.8cc, inline-four cylinder engine is designed with a high level of top-end performance plus strong low- to mid-range power.
• The crankshaft retains Suzuki’s Even Firing Order Engine legacy. Uneven firing order engines used in other motorcycles vibrate more, while the GSX-R1000 makes good, smooth, and reliable power at all engine speeds while emitting a screamer exhaust note.
• The short-stroke engine has a 76.0mm bore versus a 55.1mm stroke yet is narrower than the prior-generation GSX-R1000 thanks to effective design.
• The engine has been rotated back and positioned in the frame to create optimal chassis dimensions for precise handling and to balance the motorcycle’s weight.
• The exclusive Suzuki Racing Variable Valve Timing System (SR-VVT) uses a centrifugal actuated mechanism on the intake camshaft sprocket to increase high engine rpm power without losing low- to mid-range power.
• The Suzuki Racing Finger Follower valve train weighs less than a tappet-style valve train for reduced friction and increased valve response at higher engine speeds.
• Titanium valves, two 31.5mm intake, and two 24mm exhaust valves are used for each cylinder. The lighter valves respond well to the finger follower’s arms and permit a 14,500 rpm redline that helps produce very high peak horsepower.
• Aluminum pistons, 76.0mm in diameter, were engineered with use of Finite Element Method (FEM) analysis and are cast for optimal rigidity and weight.
• Suzuki Composite Electrochemical Material (SCEM)–coated cylinders are integrated into the upper crankcase to reduce friction and improve heat transfer and durability.
• The high 13.2:1 compression ratio helps produce high horsepower. The cylinder head’s shallow combustion chamber minimizes heat produced during operation.
• The EFI system uses Suzuki’s Ride-by-Wire Electronic Throttle Bodies, where the throttle valves are controlled by a servo motor for fast response to rider throttle grip input while delivering precise and smooth power.
• The automatic Idle Speed Control (ISC) improves cold starting and stabilizes the engine idle regardless of engine temperature.
• Complementing the four primary fuel injectors in the throttle bodies are four Suzuki Top Feed Injectors (S-TFI) that spray fuel from the top of the airbox directly into the intake funnels. This results in higher peak power, more efficient combustion, and a higher level of fueling control.
• To increase top-end power without losing lower rpm performance, the airbox is equipped with stacked air intake funnels for the two outer cylinders. This simple design allows good air flow at all intake speeds without requiring a mechanism that adds weight or complexity.
• A pair of Suzuki Ram Air Direct (SRAD) intake ducts are used to exponentially increase the volumetric flow of air amount coming in the airbox as road speed increases.
• The digital ignition fires iridium-type spark plugs that increase spark strength and combustion efficiency. These quality components also last longer than conventional spark plugs.

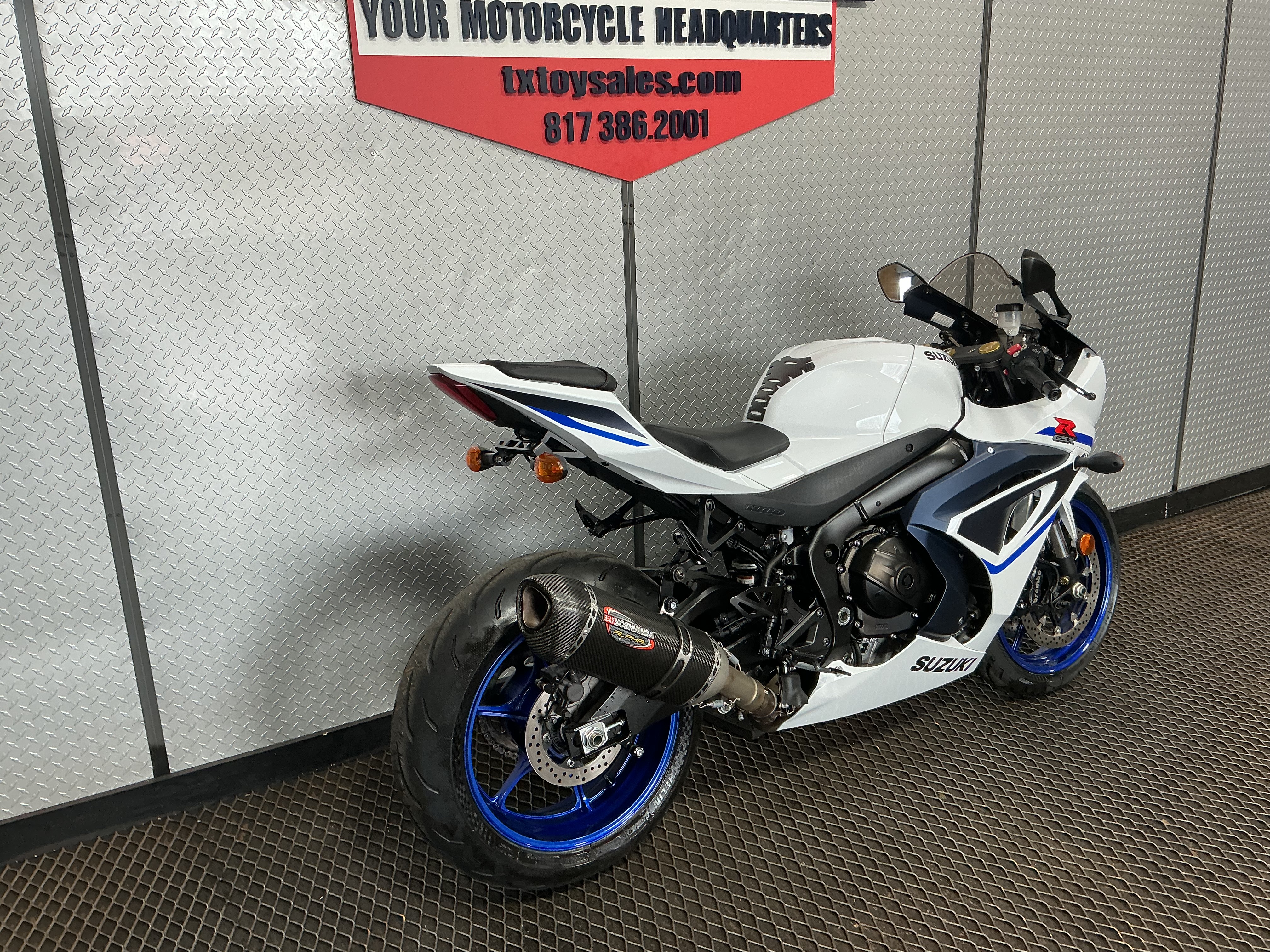

• The 4-2-1 exhaust system is designed to help the engine deliver a wide range of performance with an exciting rush up to redline. The black finish titanium muffler, with brushed stainless steel heat shield, is tucked up high for good clearance at high lean angles while creating an exciting, distinctive sound.
• The Suzuki Exhaust Tuning (SET) system valve in the mid-pipe helps control back-pressure and flow to the muffler to widen power delivery and reduce exhaust sounds without needing a larger silencer.
• SET-Alpha exhaust valves in the balance tubes between the two outer and the two inner head pipes open at higher engine speeds and close at lower rpm to help the engine create high peak power without losing low- and mid-range horsepower.
• The cooling system was designed using advanced analysis design so the coolant flows through the engine and radiator more efficiently. This design uses 400cc less coolant than the prior-generation GSX-R1000, but has better cooling efficiency while being more compact and lighter.
• The fairing lowers efficiently to guide cooling air to the high-capacity curved radiator. Twin cooling fans ensure good cooling at lower road speeds.
• Additional heat is removed from the engine via the use of an air-cooled, radiator-style oil cooler mounted directly below the main radiator.

Transmission Features

• The GSX-R1000 includes the Suzuki Bi-Directional Quick Shift System which was previously available only on the GSX-R1000R model. This system allows for clutchless upshifts and downshifts when the motorcycle is used in competition.
• The cassette-style, six-speed transmission lets riders precisely match the gear ratio to the riding condition. A cassette-style transmission can be easily removed from the crankcase as an assembly with the engine still in the frame, facilitating race track gear changes and simplified service.
• Based on Suzuki’s race-proven close-ratio transmissions, the GSX-R1000 employs vertically staggered shafts to reduce overall engine length.
• The primary gear ratio is lower compared to the prior-generation GSX-R1000 for stronger acceleration.
• The shift linkage can be easily set up for reverse-pattern, GP-style shifting (even with the quick-shifter in use).
• A programmable shift light is on the main panel to provide a visual alert to the rider to shift when a certain engine rpm is reached.
• The GSX-R1000 is equipped with the Suzuki Clutch Assist System (SCAS) multi-plate, wet clutch. SCAS works like a slipper clutch during downshifts while increasing pressure on the plates during acceleration. This smooths engine braking and lightens the clutch lever pull.
• To reduce moving mass, a 525-size drive chain is used with a 45/17 final sprocket ratio that complement the large rear tire dimensions.

Advanced Electronics Feature

• A powerful, 32-bit dual processor Engine Control Module (ECM) blends Suzuki’s vast street-going EFI knowledge with the intelligence from Suzuki’s race-winning MotoGP program. GSX-R1000 riders will get sportbike performance without peer while simultaneously receiving polished street manners.
• Using MotoGP knowledge, Suzuki has fitted an Inertial Measurement Unit (IMU) to the GSX-R1000. The IMU provides six-direction, three-axes motion, and position information to the ECM so instantaneous adjustments can be made electronically to the engine and chassis components that influence performance.

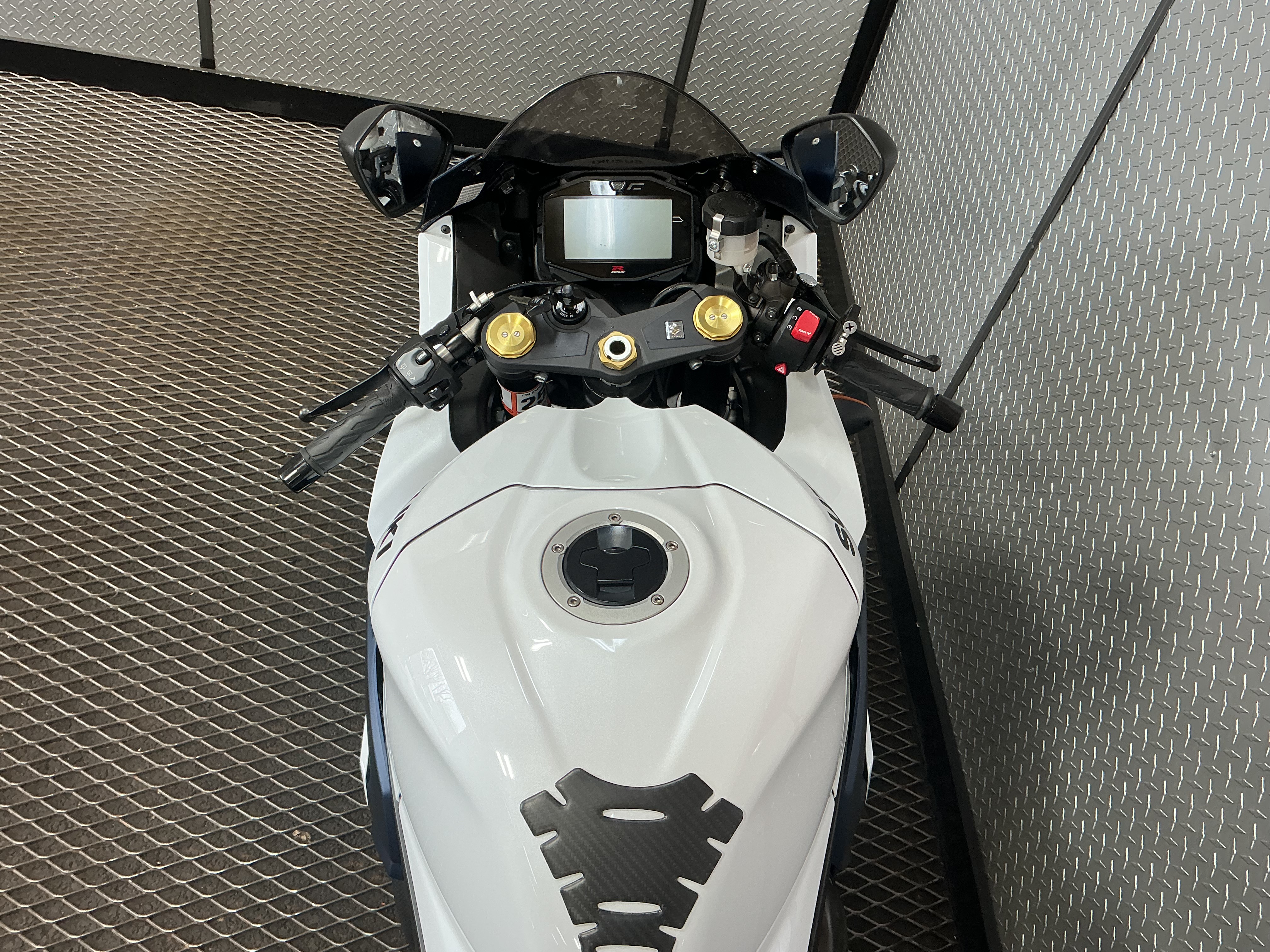

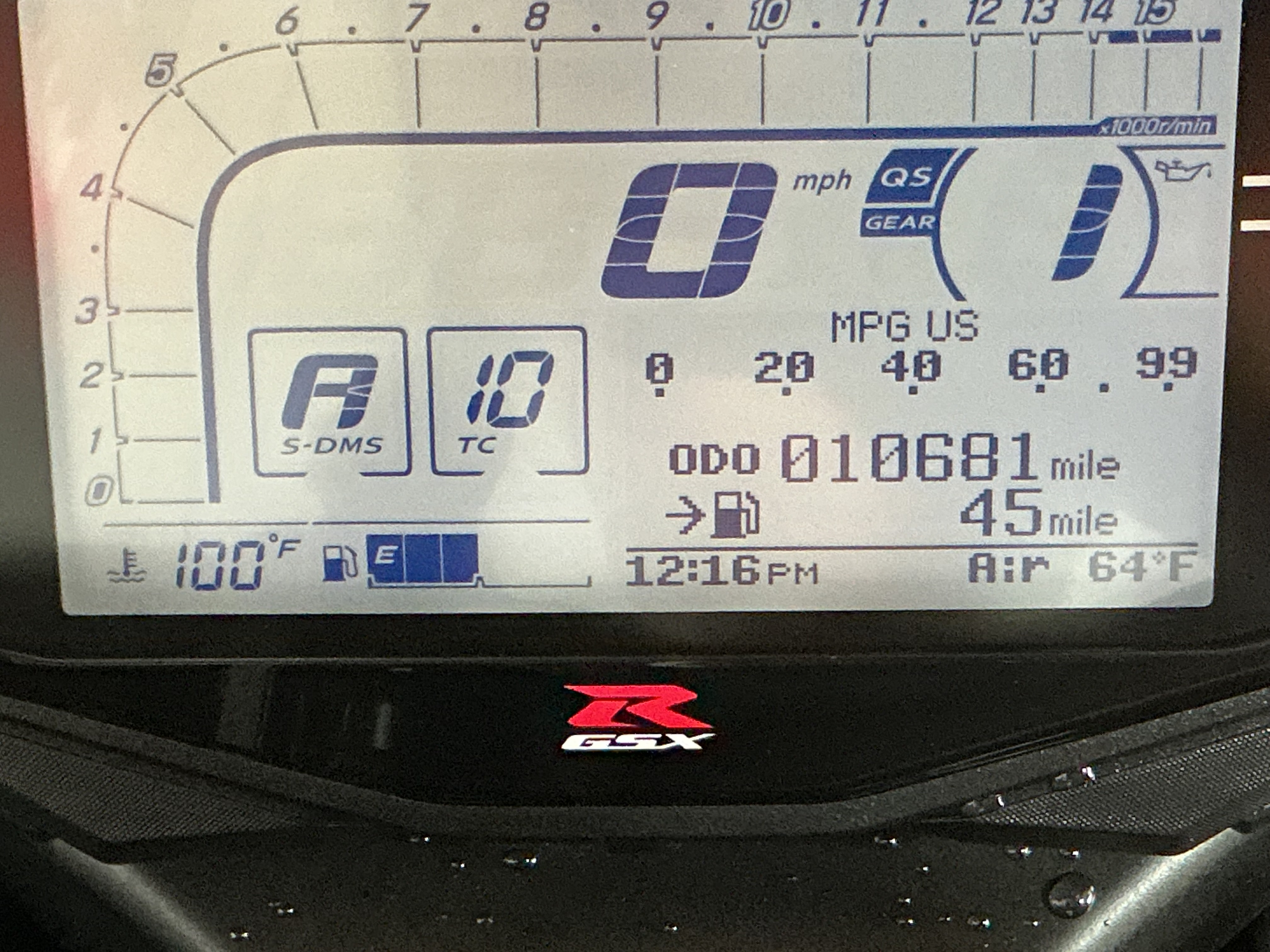

• The LCD multifunction instrument panel was inspired by the GSX-RR MotoGP dash. This panel is laid out so the rider can easily see the tachometer bar, speedometer digits, and other essential operational information. This effective display is critical, as it is the rider’s interface to the GSX-R1000's advanced electronics.
• The Ride-by-Wire electronic throttle bodies are precisely opened by the ECM to match the throttle grip rotation of the rider’s hand and the refinement from the IMU-influenced electronics. The result is a strong, seamless engine power delivery from idle to redline.
• The three-mode Suzuki Drive Mode Selector (S-DMS) system lets the rider select the engine’s power delivery characteristic to match riding ability and conditions.
• The exclusive 10-mode Motion Track Traction Control System (MT-TCS)*, with IMU influence, increases rider confidence by allowing adjustments to the amount of intervention to match riding ability and surface conditions.
• Exclusive to Suzuki, the Motion Track Anti-lock Brake System (ABS)** brings additional control to anti-lock braking. Like a conventional ABS system, the Motion Track Brake System provides the appropriate amount of braking force for the available traction. When the IMU detects the rear wheel lifting up from extreme braking forces, the ABS control module will adjust the front brake pressure to reduce the rear wheel lift.
• The Suzuki Easy Start System simplifies startup for the GSX-R1000 rider as the ECM automatically cranks the engine for 1.5 seconds (or until it starts) with a momentary press of the starter button. There is no need to pull in the clutch lever if the transmission is in neutral. Once started, the ECM will control the electronic throttle bodies to maintain a consistent engine idle speed, whether the engine is cold or warm.
• The innovative Suzuki Low RPM Assist System smooths takeoffs and reduces the chance of the rider stalling the motorcycle. If necessary, the ECM raises engine rpm slightly for a smoother start when the clutch is released, so it’s easier to ride away from a stop or navigate at very low speeds in traffic.
• The Suzuki Bi-Directional Quick Shift System lets racers shift faster than ever before. By ignition timing manipulation on upshifts and electronic throttle body manipulation on downshifts; clutchless shifting helps deliver faster and more consistent lap times.
